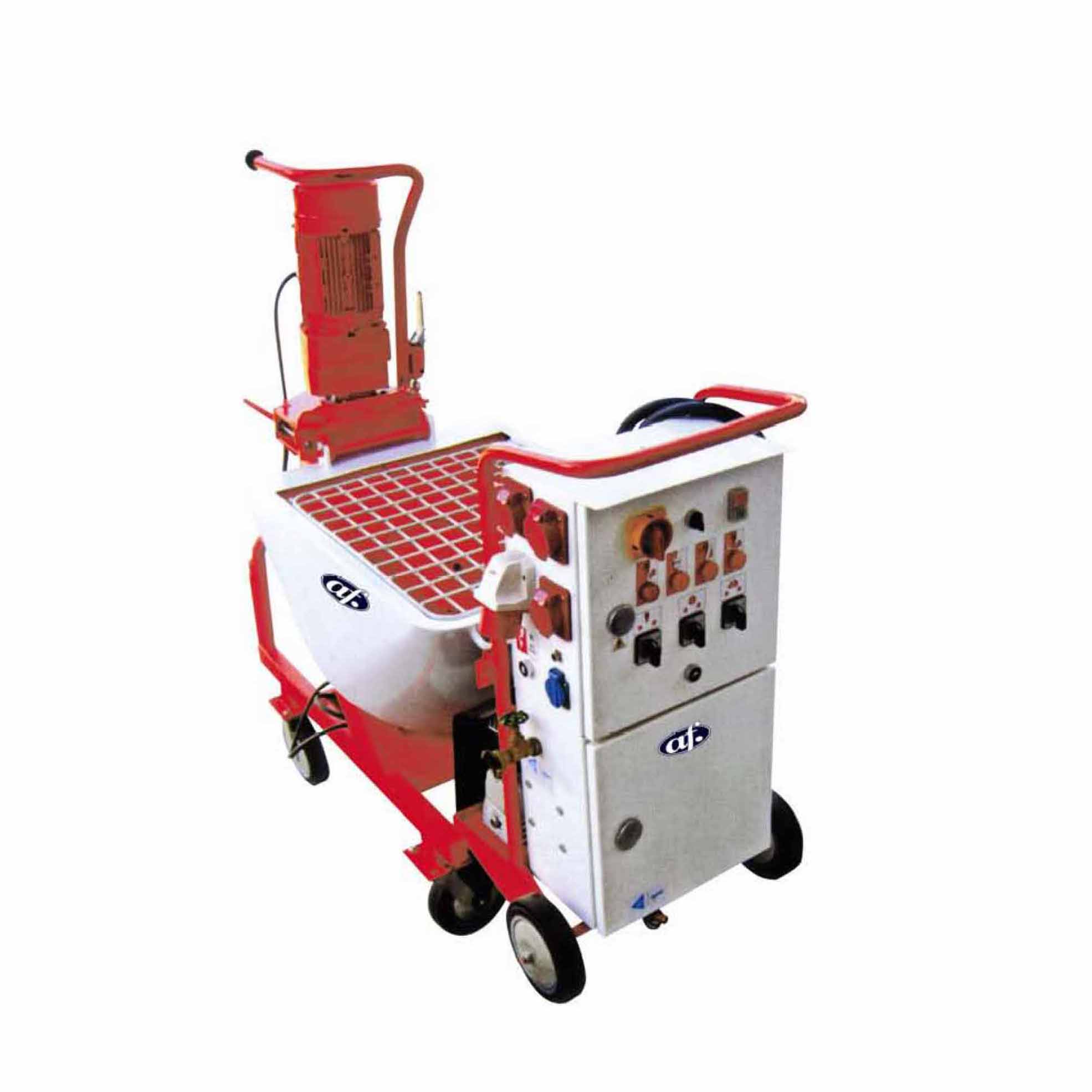

AF1 is an advanced continuously working mixing machine for all ready-mixed dry mortars and plasters. It can be filled with bagged material or connected with silo.
Thanks to its ergonomic design the fully equipped AF1is ideal for a vast range of applications of plaster (gypsum/ gypsum-lime plaster), floor-screed, rendering (lime/ lime-cement and insulating plasters), bonding mortar as well as reinforcement mortars.
FEATURES
High performance 5,5kw geared motor for the mixer and pump.
0,75kw geared motor for the dosing hopper
Diaphragm air compressor with pressure switch off
Warm pump
Dosing hopper with loading wheel
Mixing tube
Control box
Electro mechanic or electronic remote switch
Rubber hoses 25mm,10m with couplings.
Air hose 13mm, 10m with geka couplings.
Water pump
Water flow meter
Fine plaster gun with 14mm nozzle
Mixing tube
Cleaning shaft
TECHNICAL DATA
MODEL
AF1
Mixer and pump gear motor
5,5 kw
Dosing hopper gear motor
0,75 kw
Output *
6-80 lt/min
Max delivery distance 25mm hose *
40 m
Max delivery distance 35mm hose *
60 m
Air compressor
Diaphragm type 270 lt/min
Water pump
¾” , 2,5 bar min.
Weight
260 kg
Dimensions L/W/H
1,050 / 720 / 1,550 mm
* Depends on material type, quality, composition and consistency, warm type and condition, diameter of conveying hose and conveying height.
